HVAC & Upper Air UV Sanitizers

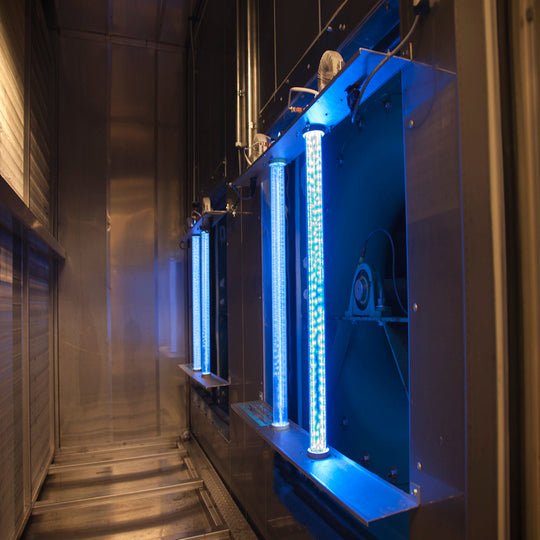

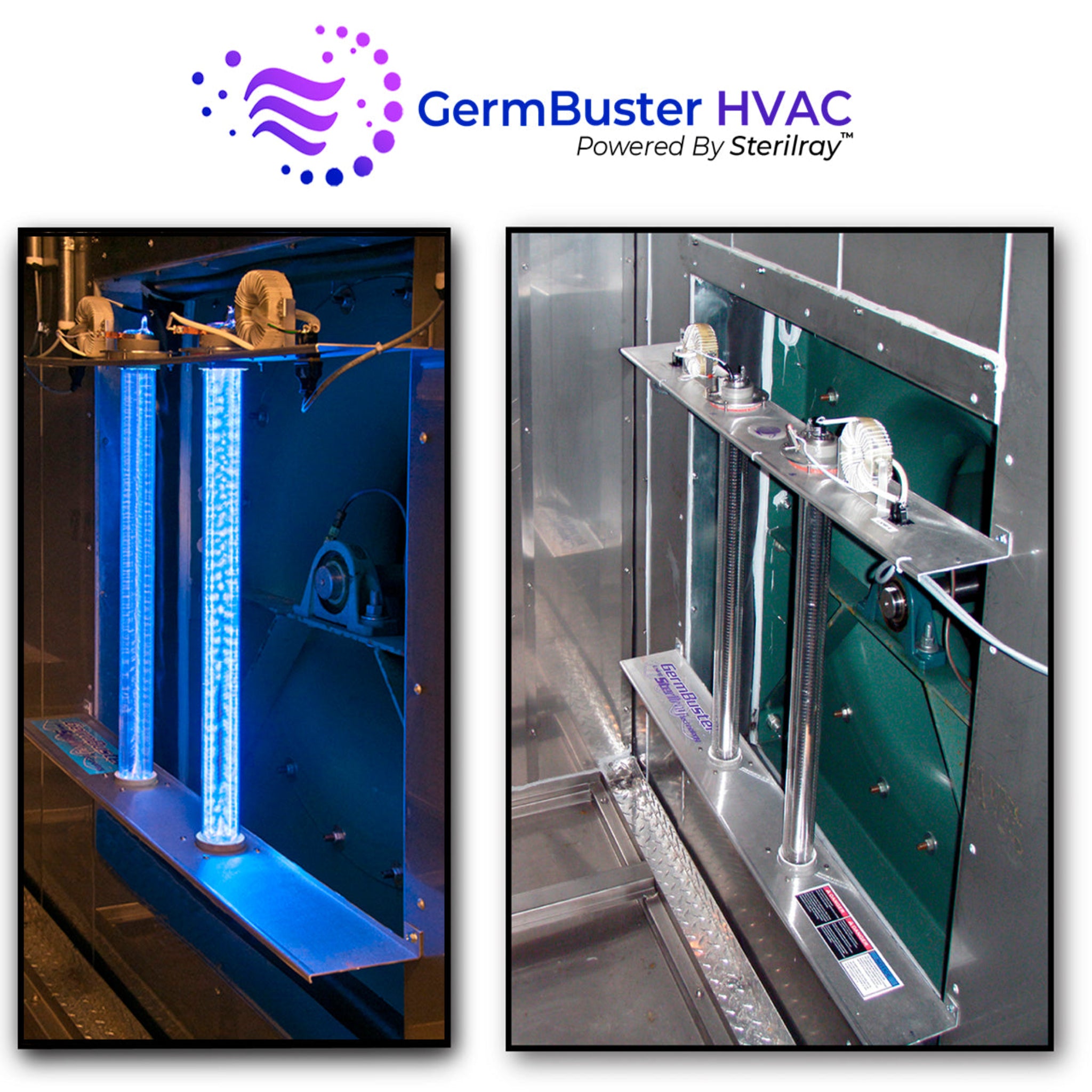

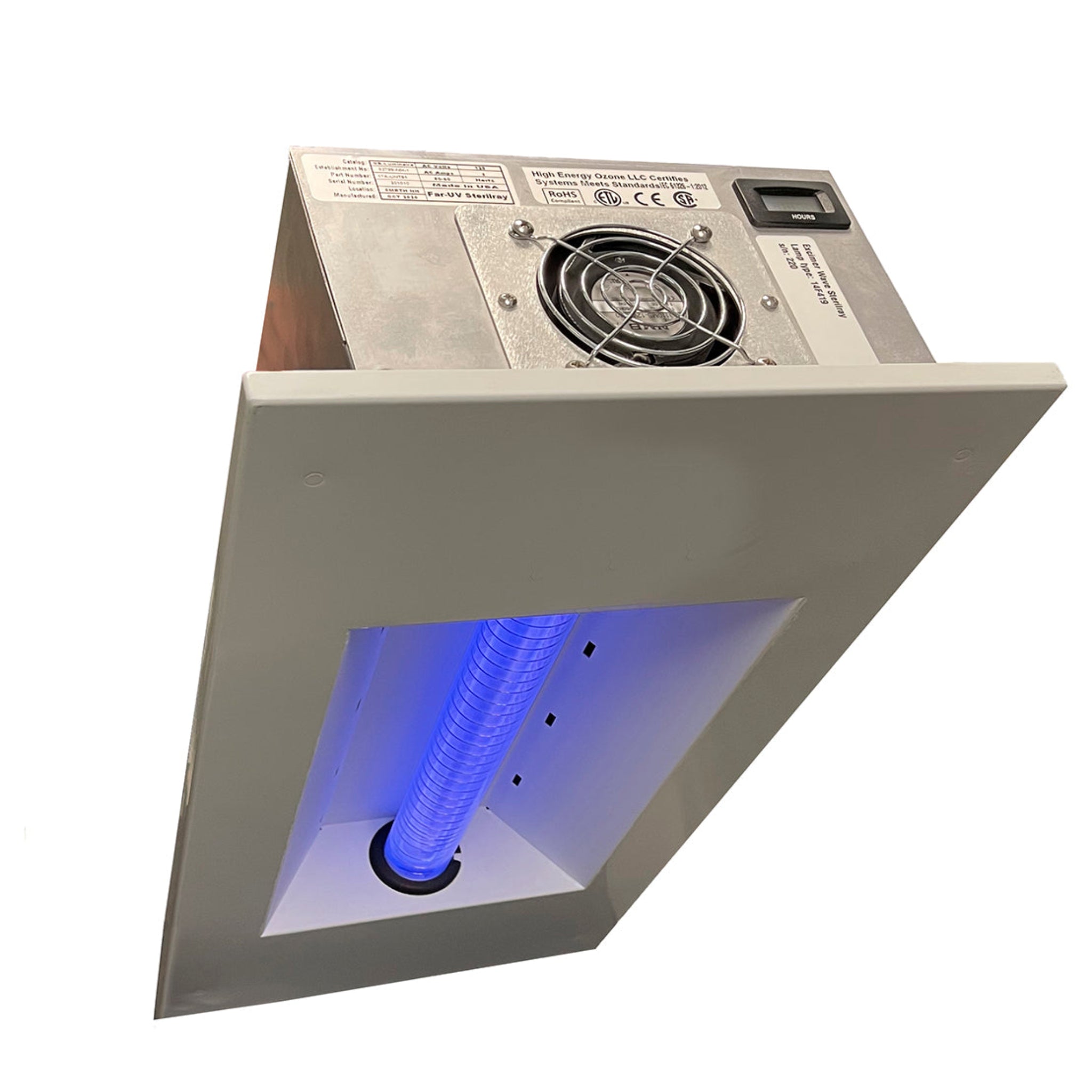

Sterilray Germbuster HVAC - Far UV HVAC Sanitizer

One fifth of a second is all it takes for Far-UV Sterilray to eliminate 99.98% of the world's most harmful bacteria, viruses and spores.

With unmatched speed, convenience, lamp life, and effectiveness, the GermBuster HVAC provide facility-wide disinfection of airborne infectious pathogens that can cause respira­tory sickness, disease, and infection.

The commercial HVAC Far-UV fixtures are designed for effective coil cleaning and improved indoor air quality (IAQ} in any type of AHU system and are prewired at the factory for code compliance and easy install. The fixtures are constructed to be amazing­ly durable, scalable to custom fit any AHU, and are engineered with patented, proprietary Far-UV lamps and power supplies. Far-UV lamps have a 30,000 hour life warranty.

Facility-wide disinfection of airborne infectious pathogens:

• Utilizes Human Safe Far-UV technology with a 30,000 hour lamp warranty.
• Output power, and frequent on/off cycles does not affect lamp life.
• Works invisibly within existing HVAC systems to create a safe, comfortable, germ-free indoor environment.
• Dry, Chemical Free - environmentally friendly, lamps produce no ozone.
• Powerful air disinfection for buildings. Stops airborne virus and bacteria before transmission.
• Works 24/7 to keep air free and clear of airborne contaminants.
• Neutralizes and eliminates the infectious airborne pathogens that cause respiratory illness and disease.

Product Specifications

• Lamp Length - 18"/23"
• Lamp surface area - 531 cm2/679 cm2
• Power Supply Dimensions (W x D x H) - 12" x 12" x 5"
• Power supply weight - 11 lb/19.2
• Operating temperature - 40 degrees ~ +104 degrees F
• Operating humidity - 10-85%
• Mounting - AHU
• Finish color - Gray
• Housing material - Powder coated aluminum
• Power supply - 100-270V AC 50/60 Hz
• Input power consumption - 250/500W
• Lamp Technology - Far-UV 222nm Excimer
• Beam Angle - 360 degrees
• Power supply warranty - 1 year parts and labor
• Lamp life warranty (pro-rated)- 30,000 hours

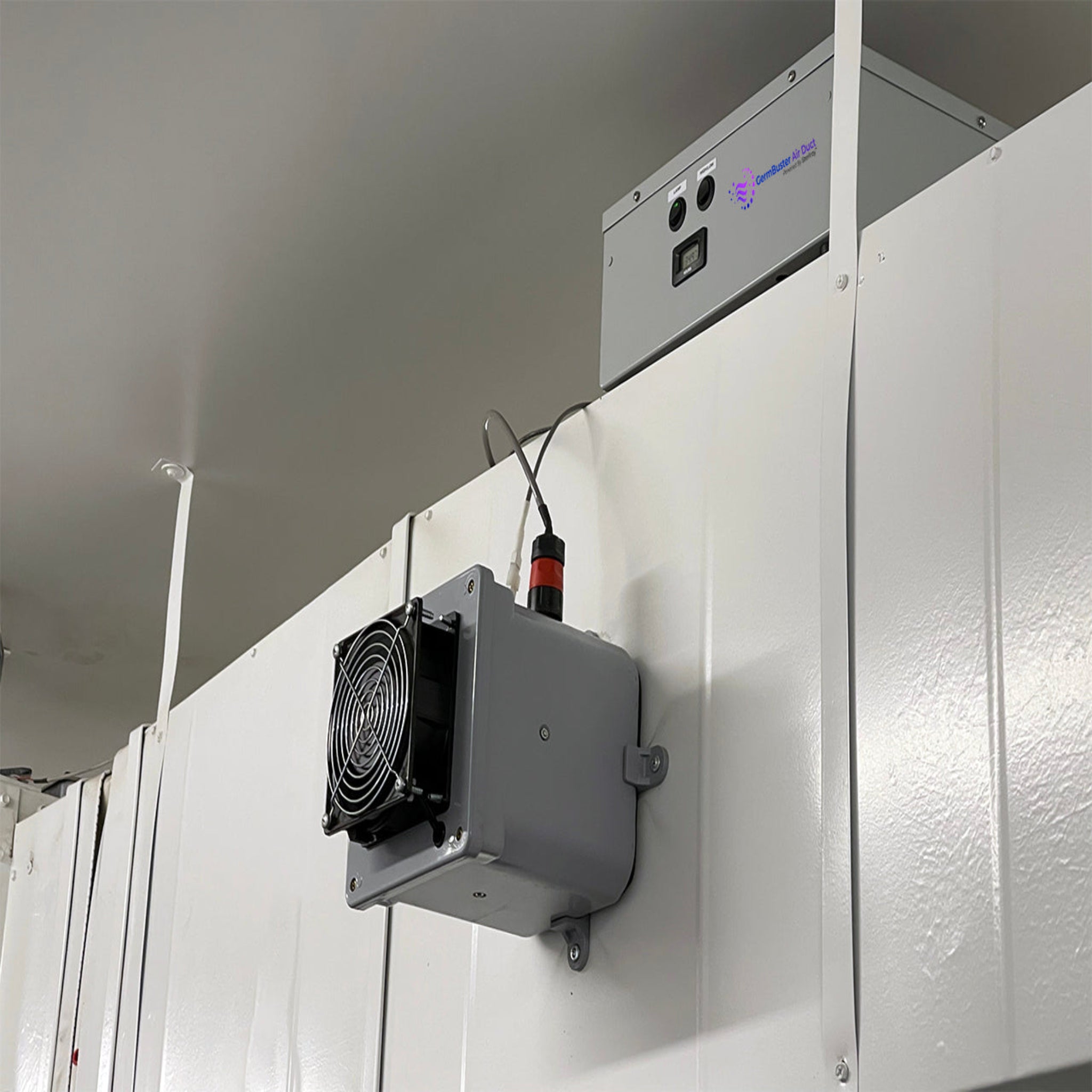

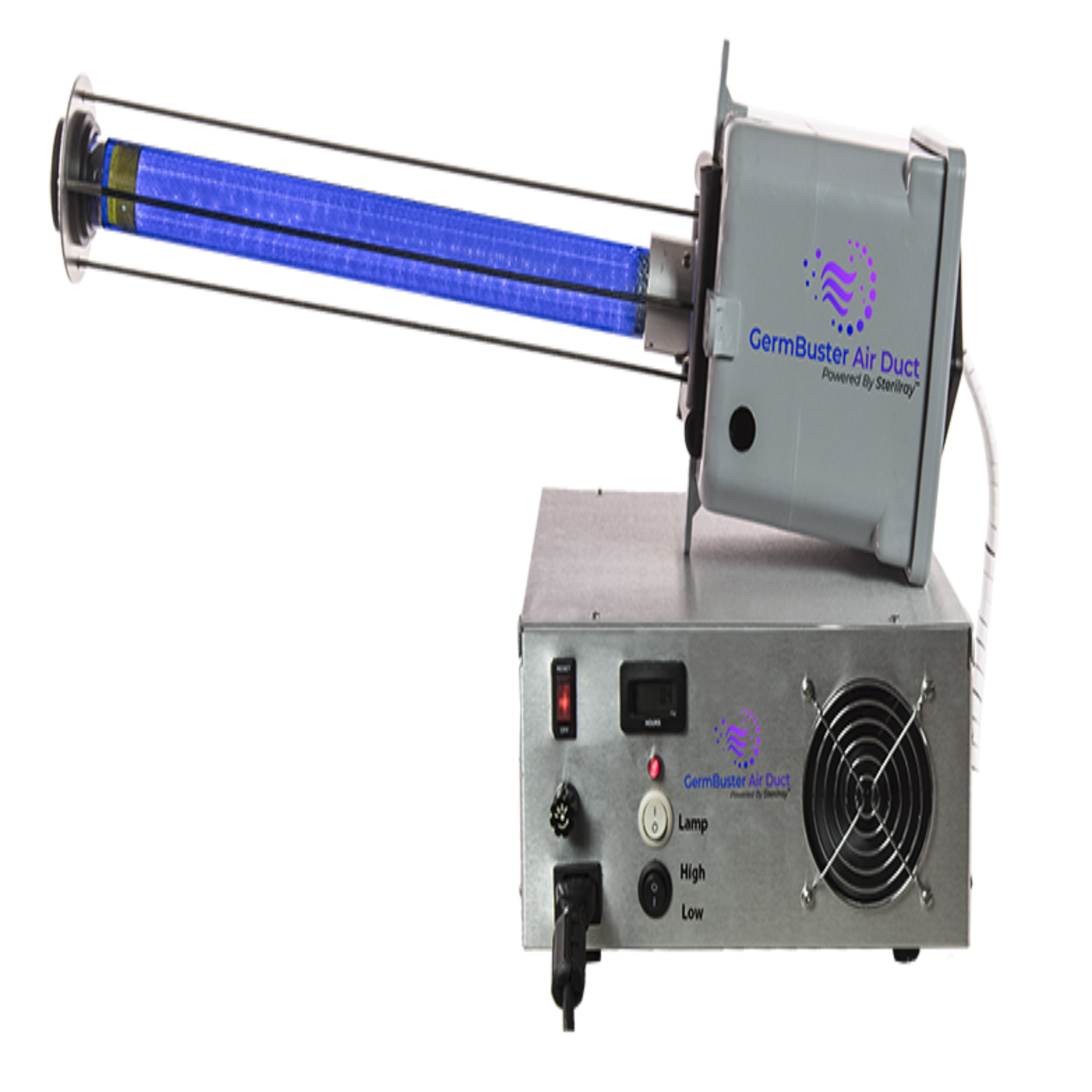

Sterilray Germbuster Air Duct - Far UV HVAC Sanitizer

According to several reports and research, airborne transmission of diseases through heating and air conditioning systems are much more common than previously thought. ASHRAE and the CDC now cite Far-UV as one of the control strategies that may help avoid transmission.

Far-UV use in HVAC systems is now recognized as an important contributor to improved indoor air quality, biofilm control, energy savings, and maintenance reductions in commercial, residential, health care and other environments. The GermBuster Air Duct delivers the highest UV output driving HVAC efficiency while improving air quality.

Purposely designed for maximum disinfection efficacy

• Utilizes Human Safe Far-UV technology with a 30,000 hour lamp warranty.
• Output power, and frequent on/off cycles does not affect lamp life.
• Works invisibly within existing HVAC systems to create a safe, comfortable, germ-free indoor environment.
• Dry, Chemical Free - environmentally friendly, lamps produce no ozone.
• Powerful air disinfection for buildings. deactivates airborne virus and bacteria before transmission.
• Works 24/7 to keep air free and clear of airborne contaminants.
• Neutralizes and eliminates the infectious airborne pathogens that cause respiratory illness and disease.

Product Specifications

• Lamp fixture dimensions (W x D x H) - 8.5"x8.5"x27.25"
• Lamp fixture weight - 6.85 lbs
• Lamp Length - 18/23"
• Lamp surface area - 537 cm2
• Power supply dimensions (W x D x H) - 12"x12"x5"
• Power supply weight - 11/19.2 lbs
• Operating temperature - 40 degrees ~ +104 degrees F
• Operating humidity - 10-85% RH
• Mounting - In Duct
• Finish Color - Gray
• Housing Material - PVC/powder coated aluminum
• Power Supply - 100-270V AC 150/60 Hz
• Input Power Consumption - 250/500 W
• Lamp Technology - Far-UV 222nm Excimer
• Beam Angle - 360 degrees
• Power Supply Warranty - 1 year parts and labor
• Lamp life Warrant - 30,000 hours

Aerapy PSF Series - Upper Air UV Sanitizing Solutions

The PSF Series(PSF-16 and PSF-24) of upper air ultraviolet germicidal irradiation (UVGI or UV) systems harnesses the power of short-wavelength UV-C light to help kill pathogens or render them harmless. UV is a well-established means of disinfection used to help prevent the spread of certain infectious diseases.

The PSF Series is designed for smaller indoor environments, including spaces with no HVAC in place, that need immediate airflow, circulation, and disinfection. Also helps reduce pathogens that settle out of the air and onto surfaces. The PSF Series can help reduce both the air pathogen load and, in combination with normal surface cleaning
procedures, help further reduce the surface pathogen load.

How does upper air UV sanitizing work?

The PSF Series employs short-wavelength UV-C light to kill or inactivate pathogens such as bacteria, viruses, and molds in the air by disrupting their DNA and destroying their cellular function, causing the death of the microorganisms and/or rendering them helpless.

While air naturally moves to the upper room via convection currents, these upper air products feature integrated fans to more quickly create circulation and airflow. As the air circulates through the indoor space, each round trip from the lower room to the upper room and into the unit’s disinfecting UV-C light continues to reduce the
number and impact of pathogens.

Indoor environments that would benefit from the Zone360 include, but are not limited to:

• Healthcare (e.g., doctor’s offices, nurse’s stations,
  dental offices, nursing homes)

• Learning (e.g., daycare centers, schools)
• Food packing, prep, and service (e.g., restaurants,
  grocery stores, butchers, bakeries)
• Retail and service (e.g., gyms, shops, spas, salons)
• Animal care (e.g., veterinary clinics, pet boarding
  facilities, doggie daycares, grooming salons, animal
  shelters)
• Law enforcement (e.g., police stations, jails)
• Temporary housing (e.g., emergency, homeless, and
  transitional shelters)

Product Specifications

• Designed for rooms less than 250 sq. ft. (PSF-16) and 400 sq. ft. (PSF-24).
• Requires at least 7 ft ceiling heights and 120V to operate.
• Wall mounted.
• Plugged in.
• Fans at both ends of unit to create powerful airflow.
• Constructed of non-corrosive aluminum.
• Manufactured in the USA.
• Dimensions: 5.4” x 7” x 16" (PSF-16)/24” (PSF-24)
• Weight: 7 lbs (PSF-16), 9 lbs (PSF-24)
• Amps: 0.6 (PSF-16), 1.1 (PSF-24)
• 105cfm (PSF-16) and 210cfm (PSF-24, 2 speed switch)
• Noise Level: 45-50 dB
• Wavelength: UVC 253.7nm
• Produces zero ozone
• Warranty: Device - 5 years, Fan - 1 year, UVC lamp - 9,000 hrs

Please call us at 1-800-706-1677 for pricing information.

Aerapy PAH Series - In-duct UV Sanitizing for HVAC Systems

Researched, tested, and study-backed, the PAH Series (PAH-N08, PAH-N12) in-duct
ultraviolet (UV) germicidal irradiation system harnesses the power of short-wavelength UV-C light to help kill pathogens or render them harmless. UV is a well-established means of disinfection used to help prevent the spread of certain infectious diseases.

How Does UV Sanitizing for HVAC Systems Work?

The PAH-N08 and PAH-N12 are made in the USA and designed to fit into any new and existing HVAC (indoor split system). The PAH-N08 is designed for one UV-C lamp. The PAH-N12 is designed for two UV-C lamps.

The PAH Series utilizes short-wavelength UV-C light to kill or inactivate pathogens in the air by disrupting their DNA and destroying their cellular function, causing the death of the microorganism and/or rendering it helpless. Constant exposure of UV-C germicidal energy with moderate air circulation will help to effectively sanitize pathogens such as bacteria, viruses, and molds in the air stream.

Ideal location of installation is between evaporator coil inside the HVAC system to help achieve maximum exposure to pathogens both in the airstream and on the surface of the evaporator coil. Unit should operate 24/7 for optimal and continuous disinfection.

Product Specifications

• Application: Designed for indoor HVAC
• Power: 120V~240V
• Wiring: Plug in
• Indicator: Green small LED for UV-C lamp
• Construction: Non-corrosive aluminum
• Warranty: 5-year for unit | 9,000 hours for UV-C lamp
• PAH-N08 - Dimensions: 5.75”W x 2.25”H x 9”L - Weight: 3.0lb Amps: 0.5
  PAH-N12 - Dimensions: 5.75”W x 2.25”H x 17.25”L - Weight: 6.0lb - Amps: 1.0

Please call us at 1-800-706-1677 for pricing information.

UV Sanitizing Solution for In-duct HVAC Systems

Researched, tested, and study-backed, the patented PPR Series of in-duct ultraviolet (UV) germicidal irradiation systems harness the power of short-wavelength UV-C light to help kill pathogens or render them harmless. UV is a well-established means of disinfection used to help prevent the spread of certain infectious diseases.

How Does UV Sanitizing for HVAC Systems Work?

The PPR series of UV disinfection technology is designed to fit into any new and existing packaged HVAC system. The relevant PPR equipment (i.e., PPR-08, PPR-12, PPR-20, PPR-40 or PPR-60) will depend on HVAC capacity. Aerapy works
with you to size your PPR equipment appropriately to help ensure maximum disinfection capacity. All PPR units are manufactured in the USA and include a safety door switch and viewport.

Product Specifications

• Application: Designed for outdoor packaged HVAC
• Power: AC 120V~277V, 60Hz
• Wiring: Direct wire
• Safety: Safety door switch and viewport
• Quick connector: Each unit is equipped with quick connector for fast and secure connection
• Construction: Stainless steel and Non-corrosive aluminum
• Warranty: 5-year for unit | 9,000 hours for UV-C lamp
• PPR-08 -  Dimensions: 5.8”W x 3.1"D x 17.6”L - Weight: 3.0 Lbs - Amps: 0.7
  PPR-12 -  Dimensions: 5.8”W x 3.1"D x 17.6”L - Weight: 6.0 Lbs - Amps: 1.4
  PPR-20 -  Dimensions: 5.8”W x 3.1”D x 17.6”L - Weight: 9.0 Lbs - Amps: 2.1
  PPR-40 -  Dimensions: 5.8”W x 3.1”D x 17.6”L - Weight: 12.0 Lbs - Amps: 2.8

Please call us at 1-800-706-1677 for pricing information.

Aerapy Zone 180 Series - Upper Air Wall Mount UV Sanitizer

The Zone180 Series upper air ultraviolet germicidal irradiation (UVGI or UV) systems harnesses the power of short-wavelength UV-C light to help kill pathogens or render them harmless. UV is a well-established means of disinfection used to help prevent the spread of certain infectious diseases.

The Zone180 Series is designed for smaller indoor environments, including spaces with no HVAC in place, that need immediate airflow, circulation, and disinfection. Also helps reduce pathogens that settle out of the air and onto surfaces. The Zone180 Series can help reduce both the air pathogen load and, in combination with normal surface
cleaning procedures, help further reduce the surface pathogen load.

Indoor environments with smaller spaces that would benefit from the Zone180 Series include, but are not limited to:

• Healthcare (e.g., doctor’s offices, nurse’s stations,
  dental offices, nursing homes)

• Learning (e.g., daycare centers, schools)
• Food packing, prep, and service (e.g., restaurants,
  grocery stores, butchers, bakeries)
• Retail and service (e.g., gyms, shops, spas, salons)
• Animal care (e.g., veterinary clinics, pet boarding
  facilities, doggie daycares, grooming salons, animal
  shelters)
• Law enforcement (e.g., police stations, jails)
• Temporary housing (e.g., emergency, homeless, and
  transitional shelters)

Product Specifications

• Designed for rooms less than 250 sq. ft. (Zone180-16) and 400 sq. ft. (Zone180-24).
• Requires at least 7 ft ceiling heights and 120V to operate.
• Wall mounted.
• Direct wired or plugged in.

• Integrated fans (one in Zone180-16, two in Zone180-24) to create powerful airflow.
• Constructed of non-corrosive aluminum.
• Manufactured in the USA.
• Weight: 12.5 lb / 18 lb
• Dimensions: 8” x 6” x 16" (Zone180-16)/24” (Zone180-24)
• Voltage: 120
• Amps: 0.75 (Zone180-16), 1.5 (Zone180-24)
• Wavelength: UVC 253.7nm
• Produces zero ozone
• Warranty: Device - 5 years, Fan - 1 year, UVC lamp - 9,000 hrs

Please call us at 1-800-706-1677 for pricing information.

Aerapy Zone 360 Series - Upper Air UV Sanitizer

Researched, tested, and study-backed, the Zone360 upper air ultraviolet germicidal irradiation (UVGI or UV) system harnesses the power of short-wavelength UV-C light to help kill pathogens or render them harmless. UV is a well-established means of disinfection used to help prevent the spread of certain infectious diseases.

The Zone360 is suitable for indoor environments, including spaces with no HVAC in place, that need immediate airflow, circulation, and disinfection. Also helps reduce pathogens that settle out of the air and onto surfaces. The Zone360 can help reduce both the air pathogen load and, in combination with normal surface cleaning procedures, help further reduce the surface pathogen load.

Indoor environments that would benefit from the Zone360 include, but are not limited to:

• Healthcare (e.g., doctor’s offices, nurse’s stations,
  dental offices, nursing homes)

• Learning (e.g., daycare centers, schools)
• Food packing, prep, and service (e.g., restaurants,
  grocery stores, butchers, bakeries)
• Retail and service (e.g., gyms, shops, spas, salons)
• Animal care (e.g., veterinary clinics, pet boarding
  facilities, doggie daycares, grooming salons, animal
  shelters)
• Law enforcement (e.g., police stations, jails)
• Temporary housing (e.g., emergency, homeless, and
  transitional shelters)

Product Specifications

• Fits 2’ x 2’ or 2’ x 4’ ceiling grid.
• Designed for 500-1,000 sq. ft. rooms.
• Requires at least 8 ft ceiling heights and 120V to operate.
• Ceiling mounted or suspended by a cable/chain.
• Direct wired, plugged into a receptacle, or directly connected to an HVAC supply duct.
• Zone360X also includes remote control and option of three fan speeds.
• Designed with louvers to collimate UV-C rays and keep them away from occupants, below. Not to be used in rooms with reflective (e.g., metal) walls.
• Constructed of stainless steel and non-corrosive aluminum.
• Manufactured in the USA.
• Dimensions: 23-3/4” x 23-3/4” x 5”
• Weight: 28.5 lb / 29.5 lb
• Voltage: 120
• Amps: 1.6 / 2.4
• Wavelength: UVC 253.7nm
• Produces zero ozone
• Warranty: Device - 5 years, Fan - 1 year, UVC lamp - 9,000 hrs

Please call us at 1-800-706-1677 for pricing information.

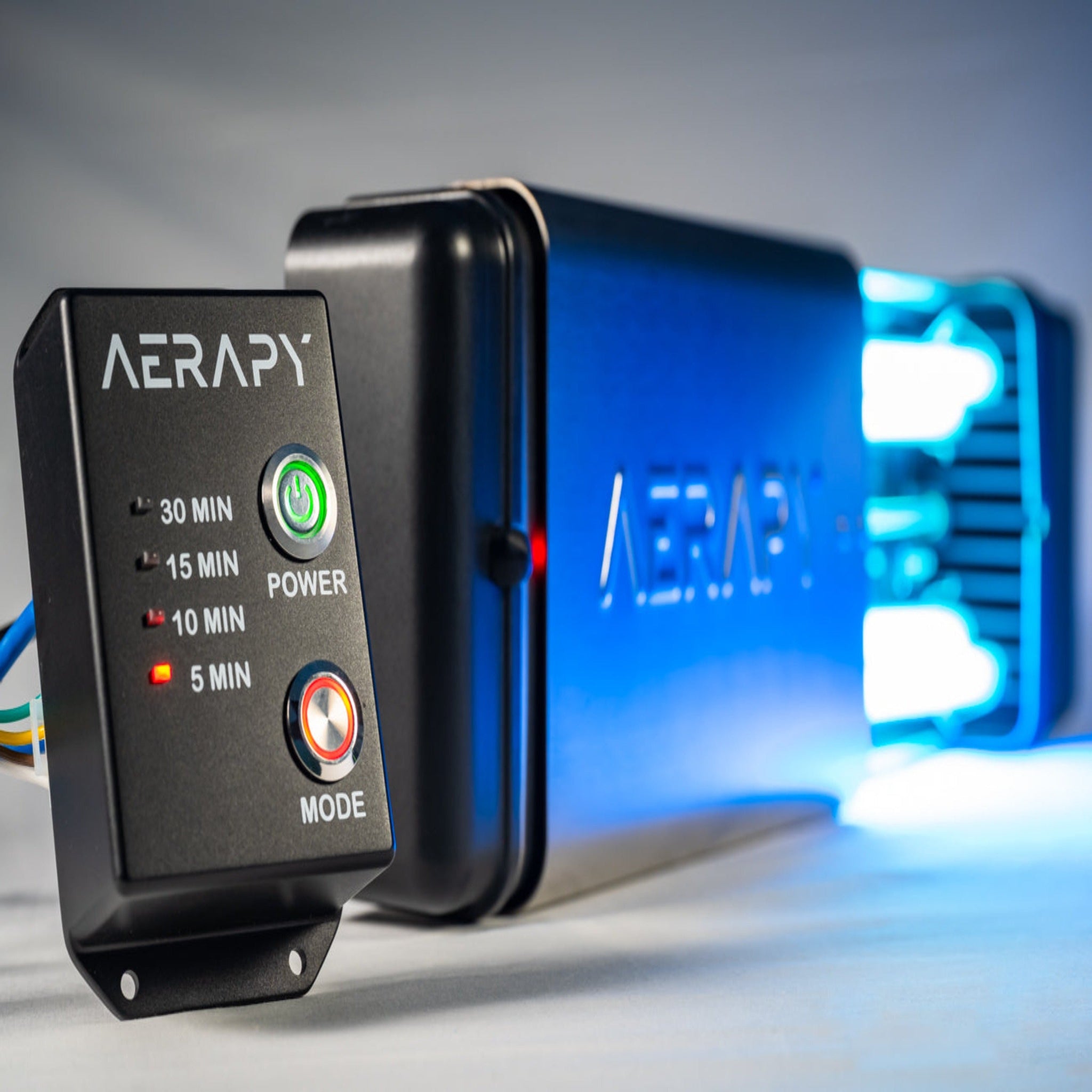

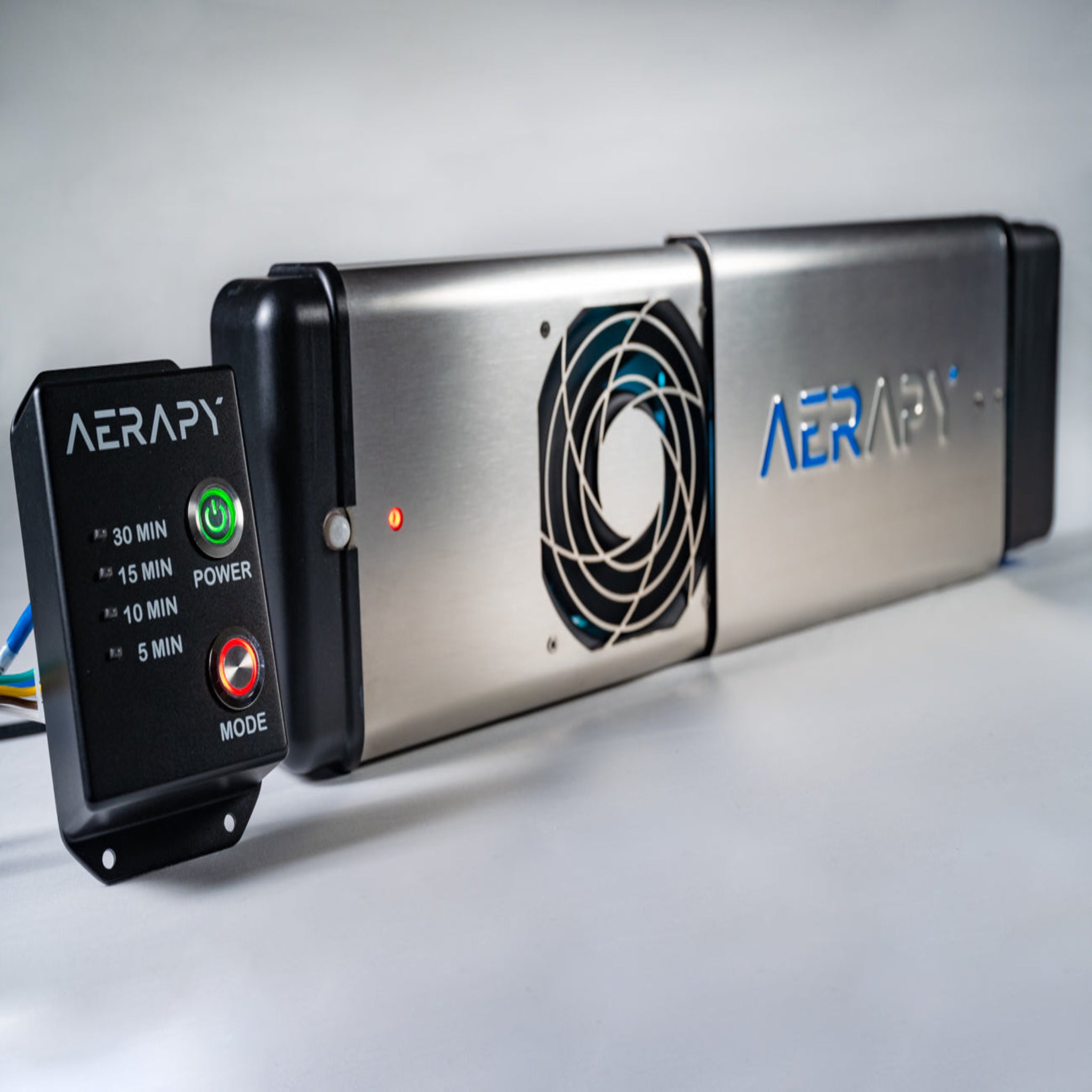

Aerapy DuoGuard - UV Sanitizing Solution for Transport Vehicles

Unique Dual Sanitizing UV for Your Vehicle

Your vehicle is continually exposed to viruses, bacteria, mold, allergens, and other pollutants that can quickly contaminate the air and surfaces and stay active and infectious for extended periods of time, risking health and lives. Aerapy’s researched, tested, study-backed, and affordable ultraviolet germicidal irradiation (UVGI or UV) equipment harnesses the power of UV-C light to kill those pathogens or render them harmless.

The patented DuoGuard for transport and service vehicles helps guard against the spread of pathogens in two ways: an integrated fan creates powerful airflow for air disinfection during transport and, once unoccupied, the UV device sanitizes surfaces with the push of a button.

Air and Surface UV Sanitizing

The DuoGuard's unique dual air and surface cleaning capability allows your vehicle to be cleaned both while in use, as well as in-between service calls while unoccupied, bringing unmatched disinfecting power.

While the vehicle is running, the compact ceiling-mounted device offers continuous air sanitizing with fully contained UV-C lamps and an integrated fan to draw air into the device to clean and disinfect. When the vehicle is safely unoccupied, the DuoGuard's surface sanitizing function can be engaged as an innovative panel slides back to reveal the UV-C lamps that then illuminate to further clean exposed surfaces after normal cleaning procedures.

How does it work?

The DuoGuard employs short-wavelength UV-C light to kill or inactivate pathogens such as bacteria, viruses, and molds in the air by disrupting their DNA and destroying their cellular function, causing the death of the microorganisms and/or rendering them helpless.

Air Cleaning:
Drawn into the device by an integrated fan, air then passes through the DuoGuard’s disinfecting UV-C light. Each trip through the device continues to reduce the number
and impact of pathogens in the vehicle. The air sanitizing function can be engaged while the vehicle is occupied and in transport as the UV is fully contained within the device.

Surface Cleaning:
The usual method of cleaning and wiping down surfaces and tools with disinfectants is an important first step, but because vehicles have hard to reach, uneven surfaces it’s easy to miss areas. The DuoGuard surface cleaning function exposes UV light to touch all exposed areas within the vehicle for your choice of 5, 10, 15, or 30 minutes and, in combination with normal cleaning procedure, is the optimal solution for surface disinfection.

Safety Features:
A sliding panel keeps the UV-C light fully contained while the air cleaning function is engaged and the vehicle occupied. For surface cleaning, there is a 60-second delay after the function is activated, as well as these power interruption safeguards, to shut the device down while the UV-C lights are exposed: door switch, motion sensor, and emergency switch.

Product Specifications:

• Dimensions: 6.3" W x 2.8" H x 23.3" L
• Weight: 6.7 lb
• Lab tested and certified to kill over 99.9% of pathogens including SARS-CoV-2, MRSA, and enterovirus
• Designed for transport and service vehicles
• Disinfects both air and surfaces
• Ceiling mounted and direct wired

• Integrated fan
• Specular reflectors for increased UV-C efficiency
• Solid state electronic ballast for low energy use,
  reliability, and operational safety
• Constructed of stainless steel, aluminum, and
  UV-resistant polycarbonate (end caps)
• Voltage: 120V, 60Hz and 12VDC
• Amps: 0.7A (120VAC)/2.0A (120VDC)
• Noise Level: 45-50 dB
• Wavelength: 253.7nm UVC
• Produces no ozone
• Warranty: 5 years on device, 1 year on fan
